Dynamic Load Testing
The Dynamic Load Test (DLT) is a considerably faster and cost-effective alternative for a Static Load Test (SLT). This is in particular related to Eurocode 7 whereby current pile design safety values are valid till 2017, then either a reduction will be implemented or piles need to have been load-tested. Dynamic load tests can be part of the calculation of safety coefficients for a specific type of pile or installation method, if the DLT tests are calibrated by one static load test in a comparable situation as reference. The DLT tests can be done very time efficiently and at a much lower costs than SLT. With the Profound PDA/DLT-system the bearing capacity of several piles can be assessed in a single day. DLT is used for cast-in-place, prefabricated concrete piles and all types of steel piles.
The load is applied by an impact hammer or a suitable drop weight onto the prepared pile head. The generated compression wave travels down the pile and reflects upwards. This reflected wave contains information about the shaft friction, toe resistance and possible pile defects. The measured signals are processed and automatically stored by the PDA/DLT-system. The data can easily be retrieved for further review, graphical presentations or reporting in full accordance with ASTM D4945-17.
Pile Driving Analysis
During pile driving the performance of the hammer, the condition of the cushion, the behaviour of the pile and the driving resistance of the soil are accurately monitored and analysed.
The additional knowledge obtained by performed PDA can pay for itself many times over by:
Dynamic Load Testing (DLT) is a frequently used worldwide technique to evaluate the bearing capacity of piles. DLT is used for cast-in-place, prefabricated concrete piles and all types of steel piles.

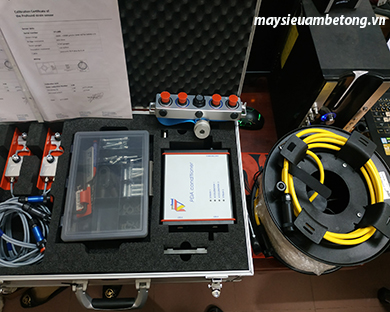

The Profound PDA/DLT-system is used for both DLT and for Pile Driving Analysis (PDA) as a powerful tool to control the pile driving process and reduce risks involved for prefabricated and steel piles. During testing the instrumented pile is monitored, whereby the Profound PDA/DLT-system directly displays and saves the measurement data.
The PDA/DLT-system meets national and international standards, such as ASTM D4945-12.
Thông số kỹ thuậtFully digital signal processing
Optimum flexibility and reliability
Easy-to-use drilling tool and caliber for optimum drilling of holes in the pile for the transducer sets
Integrated sensor condition testing
Immediate presentation of acquired data on screen
Flexible USB based conditioner and compact junction box
Easy mounting and handling of sensors and cables
Proven technique in full compliance with ASTM D4945-17
Backed by 45 years of pile testing experience
Efficient addition to Static Load Testing according to Eurocode 7
