| Thương hiệu | Testconsult |
| Xuất xứ | English |
| Bảo hành | |
| Tình trạng hàng hóa | |
| Đơn vị tính | |
| Màu sắc | |
| Tồn kho | Còn hàng |

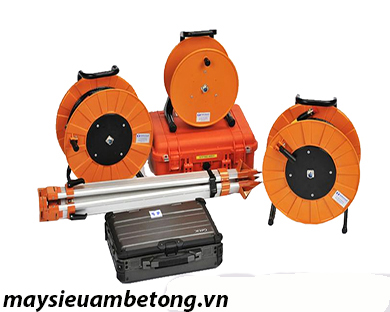

| SCXT3000 system specifications | |
| Logging unit hardware | |
|---|---|
| SCXT3000 system specifications Features | undefinedRugged PC construction with IP65 protection Battery and/or mains powered 1cm logging interval Daylight viewable screen |
| SCXT3000 system specifications Display | undefined15.6″ TFT LCD FHD QuadraClear™ Sunlight readable display |
| SCXT3000 system specifications Operating system | undefinedWindows 7 professional |
| SCXT3000 system specifications Media | undefinedUSB & DVD/CD RW |
| SCXT3000 system specifications Ultrasonic frequency | undefined50-60KHz |
| SCXT3000 system specifications Depth range | undefined100m cables supplied as standard |
| SCXT3000 system specifications Depth interval of readings | undefined1cm |
| SCXT3000 system specifications Time base | undefined200 to 100 microseconds |
| SCXT3000 system specifications Typical path length | undefined500 to 3000mm in hardened concrete |
| SCXT3000 system specifications Storage | undefined8GB RAM with 320GB hard drive Result data includes all individual signals and header information File size depends on depth of pile |
| SCXT3000 system specifications Accuracy | undefinedTime base: ± 2% Depth: ± 1% |
| SCXT3000 system specifications Power | undefinedExternal wall plug-in adapter for 110-240VAC inputs External cigar plug-in charger for 12-32VDC inputs |
| SCXT3000 system specifications Battery life | undefined4 hours + |
| SCXT3000 system specifications Charge time | undefinedApprox 8 hours |
| SCXT3000 system specifications Battery type | undefinedLi-on rechargeable |
| SCXT3000 system specifications Protection | undefinedMIL-STD-810G and IP65 certified |
| SCXT3000 system specifications Operating temperature | undefined-20°C to +50°C |
| SCXT3000 system specifications Dimensions | undefinedL 410mm x W 290mm x D 130mm |
| SCXT3000 system specifications Weight | undefined9Kg |
| Logging unit software | |
| SCXT3000 system specifications Max no tubes/profiles | undefined12 no tubes/66 profiles |
| SCXT3000 system specifications Display | undefinedWaterfall/first arrival/signal energy |
| SCXT3000 system specifications Analysis | undefined% increase in signal arrival time and % decrease in signal energy against selectable reference zones |
| SCXT3000 system specifications Referencing | undefinedReference against either top of tubes or absolute level with automatic normalising of profiles |
| SCXT3000 system specifications Output | undefinedExpanded or compressed vertical scale options or export of FAT data to ASCII |
| SCXT3000 system specifications Tomography | undefined2D and 3D tomography modules included as standard |
| Winch unit | |
| SCXT3000 system specifications Construction | undefinedHigh grade stainless steel body with aluminium to fit most makes of tripod |
| SCXT3000 system specifications Weight | undefined2.5Kg |
| SCXT3000 system specifications Display | undefinedDepth/amplitude/profile reference |
| SCXT3000 system specifications Warning lights | undefinedOver-speed and logging off/on lights to assist operator |
| SCXT3000 system specifications Remote control | undefinedRemote operation of testing controls on logging unit |
| Transducers | |
| SCXT3000 system specifications Emitter probe | undefinedPiezo ceramic radial emitter type – 50 to 60KHz operation 25mm diameter 300mm length High pressure Jupiter connector |
| SCXT3000 system specifications Receiver probe | undefinedPiezo ceramic tube receiver type 25mm diameter 300mm length High pressure Jupiter connector |
