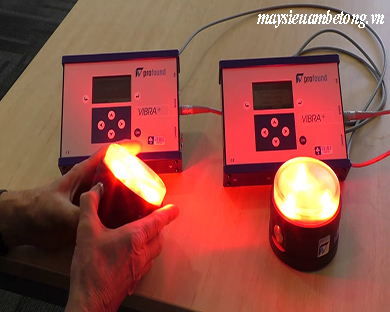

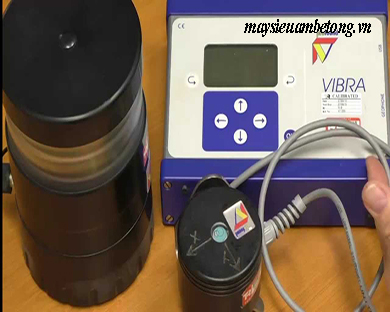

Profound VIBRA4-series, the smartest vibration monitors in the world
Combine a sensitive 3D sensor with a compact watertight unit, include high-performance processing, and the result will be unmatched performance in monitoring vibrations.
Pile driving, construction, road or rail traffic, demolition work and blasting can create vibration nuisance or cause damage to buildings and sensitive equipment. These vibrations are instantly measured, saved and displayed with a system of the Profound VIBRA-series.
The new IP65 watertight robust housing system is lightweight and easy portable. With the integrated 4G modem including fall back options online connection and data visualisation has never been so convenient.
he Profound VIBRA-series comprises the VIBRA and the VIBRA+. Depending on the chosen version of the VIBRA, the system is of national and international standards, such as the DIN 4150 and the DIN 45669. With the Profound VIBRA vibrations are measured reliably in accordance with these guidelines and also determines the dominant frequency in accordance with the advanced FFT-method.
The top model, the VIBRA+, is equipped with a PC Trace Recorder, frequency and building category dependent alarms according the codes and it is possible to set velocity, acceleration and displacement alarm. With a VIBRA+ you can view the measurement values for vibrations in buildings as well as for the effects on persons simultaneously on the display. The VIBRA+ also determines and displays real time KB-values. The different characteristics are summarized in the “features overview” in our datasheets.
Continuous and online vibration monitoring according to a large range of standards such as DIN 4150-2 and -3, BS 5228-2, BS 7385-2, SBR A and B, SS 460 48 61, blasting standards SS 460 48 66 and AS 2187.2 and is according to DIN 45669-1:2020.
Direct display of measured peak values in X, Y, Z at the project location
Real-time interpretation and verification of the vibration levels against ruling codes
Downloading data or uploading data without measurement interruption
Unattended vibration measuring for up to 28 days due to the high-tech, low power consumption electronic design in combination with software intelligence. System can also be connected to the mains
Option: extended range up to 315 Hz
Wireless automatic data transfer via integrated modem
Flexible use: direct SMS alarm, e-mail or FTP
Real-time data upload to any FTP server or vibramonitoring.com
Ring memory including ring buffer in server mode
Direct SMS alarm communication
Frequency-dependent velocity alarm (smart alarm)
‘Search Networks’ option in the VIBRA system. Find the provider with the best GPRS connection at the project location
Compact, robust field-computer that is very easy to operate
Continuous PC Trace Recorder: full measurement signal
Professional and fast (graphical) presentation of the monitoring results.
